G8 Controller

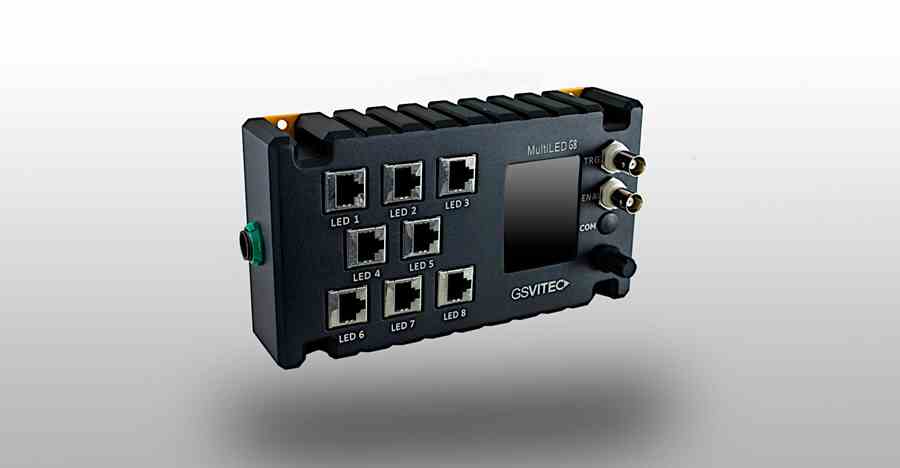

MULTILED G8 Controller

The MultiLED G8 is the control and power supply unit for up to eight QT, CT, IT, MT, LM, and ST MultiLED Lights ( MT, LM, and ST come with their own power supplies, so the G8 is for control only).

• Up to 8 lamp heads.

• Complete status display for each connected lamp head.

• Up to 1.2 kW power supply.

• Large LCD colour display.

• Trigger and enable input.

• (Optional) RS 485 remote control connection.

• Rotary switch for easy menu navigation - camera specific power cable not included.

• Camera power supply unit embedded / cable not included.

• Standard version: desktop housing.

• Optional version 1: 19“ rack mount housing 2U.

• Option for all versions: RS485.

• Huge selection of special feature power supplies available: desktop Rackmount, IP protection, high efficiency.

• Trigger and Enable inputs: TTL, isolated, up to 8V, invertible.
